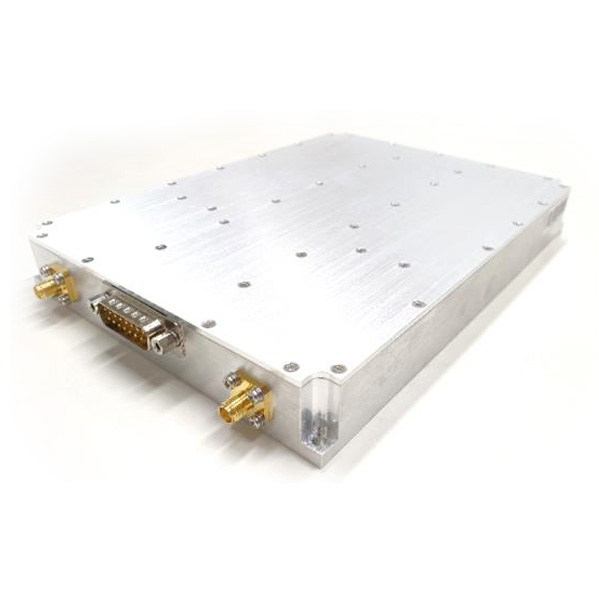

AS10-01A

General Description

The AS10-01A is a general dual band HPAmodule that have high linearity& gainperformance.Themodule featuresa flat high gain with excellent current consumption.

Applications

  • Drone jammer
  • Car-mount jammer
  • Scientific measurement system
  • EMC/EMI test

Electrical Specification (GPSL2)

Parameter Specification Comment
Frequency 1160 ~ 1254MHz
Output Power 40dBm Psat
Gain Flatness ± 1 dB Psat
Input Power for rated output power 0 Typ.
Input/Output Return Loss -10dB
Quiescent Current 0.8A
Current Consumption 1.5A Typ. @ 40dBm
Harmonic level -60dBc 2nd @ 40dBm
-60dBc 3rd @ 40dBm
